High Efficiency Heavy Duty Shredding Machine Double Shaft Shredder For Large Plastic Waste Tires Thick Barrels And Crates

Name: High Efficiency Heavy Duty Shredding Machine Double Shaft Shredder For Large Plastic Waste Tires Thick Barrels And Crates
Brand: MOOGE
Price: 10000 USD

Best High Efficiency Heavy Duty Shredding Machine Double Shaft Shredder For Large Plastic Waste Tires Thick Barrels And Crates wholesale

Brand Name : MOOGE

Model Number : VD

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : USD 10000-50000 SET(s)

Payment Terms : L/C, T/T

Supply Ability : 10 Set Per month

Delivery Time : 30-60 days

Packaging Details : standard export packing requirements

Name : Waste Recycling Shredder Machine

Keyword : Two Shaft Plastic Shredder

Blades material : 9CrSi D2 SKD-11or Customized

Function : Shred Waste Material Machine

Shaft : Twin Shaft

Capacity : 200-2000kg

Raw material : Waste Plastic Bag/Barrel

Motor : Customized

Size : Customized Size

Service : Provide Overseas Technical Support

Contact Now

High Efficiency Heavy Duty Shredding Machine Double Shaft Shredder For Large Plastic Waste Tires Thick Barrels And Crates

Your One-Stop Solution for Shredding and Crushing: Tailored recommendations for the most suitable shredding and crushing solutions based on the characteristics of various materials. Offering a wide range of shredders and crushers to meet your needs.

MOOGE TECH GROUP is located in Zhangjiagang City, Jiangsu Province, with a production facility of over 8,000 square meters. Specializing in machinery manufacturing and R&D, we focus on innovation, quality, and service. Our products, including plastic recycling machinery, shredders, crushers, and pelletizing equipment, are widely used in recycling, packaging, and environmental protection. With a professional R&D team and advanced production equipment, we are committed to delivering efficient, high-quality solutions to our customers.

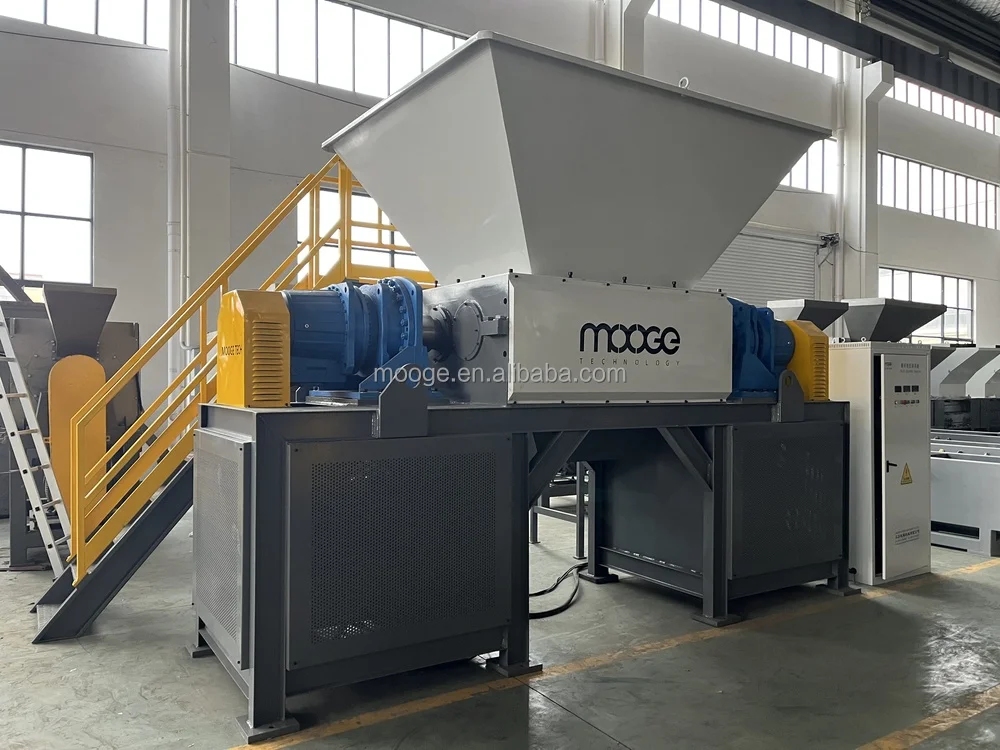

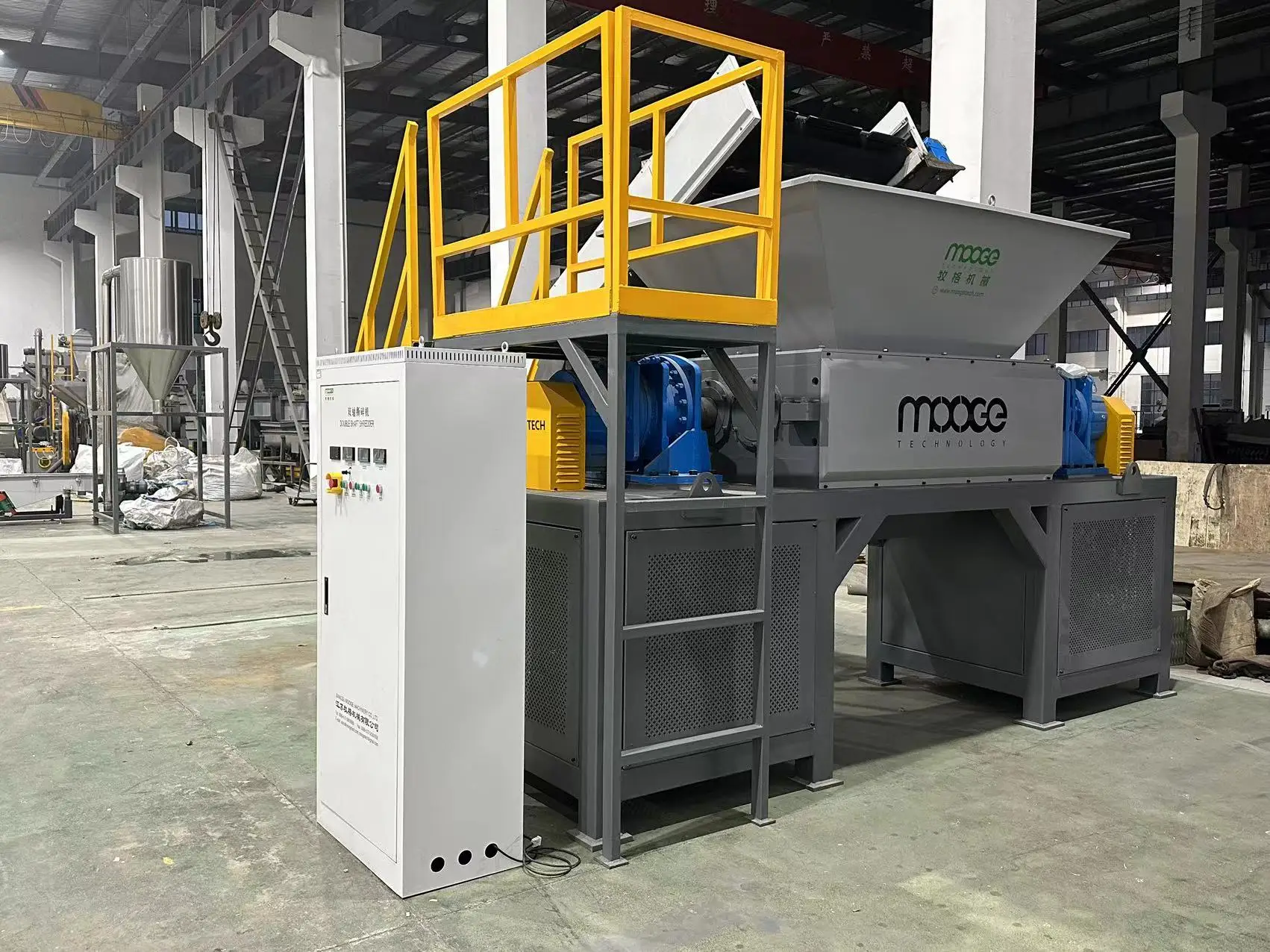

VD series Double Shaft Shredder

The VD double shaft shredder machine is designed for shredding a wide range of thin-walled plastics, including plastic buckets, crates, basins, drums, PC water bottles, and chairs. It is also suitable for shredding thin-walled metal barrels, discarded tires, tin sheets, and more.

With extensive experience in manufacturing plastic shredders, our company offers machines with a capacity range of 300–2000 kg/h and can customize the design based on your specific requirements.

Key Advantages of the VD Shredder Machine:

1. Advanced Control System: Equipped with a PLC control system for automated overload protection and an auto-reverse switch, ensuring reliable operation.

2. Superior Shaft Design: Features a robust shaft structure with low noise operation and easy blade replacement.

3. Low Speed Operation: The low rotation speed minimizes noise and reduces dust generation, creating a cleaner and quieter working environment.

4. Customizable Options: Can be tailored to meet customer-specific requirements, including throughput capacity, processed materials, and other parameters.

Choose the VD double shaft shredder for efficient, reliable, and versatile shredding solutions tailored to your needs.

Product Paramenters

Model	VD-3040	VD-3060	VD-3080	VD-30100	VD-30120	VD-4260
Motor Power (kW)	7.5	5.5+5.5	15+15	22+22	30+30	15+15
Rotor Speed (RPM)	15	15	15	15	15	15
Rotor Diameter (mm)	Φ300	Φ300	Φ300	Φ300	Φ300	Φ420
Fixed Blades QTY	20	30	40	50	60	20
Blade Thickness (mm)	20	20	20	20	20	30

Model	VD-4280	VD-42100	VD-42120	VD-52100
Motor Power (kW)	22+22	30+30	45+45	55+55
Rotor Speed (RPM)	15	15	15	15
Rotor Diameter (mm)	Φ420	Φ420	Φ420	Φ520
Fixed Blades QTY	20	25	30	16
Blade Thickness (mm)	40	40	40	60

Model	VD-52120	VD-52150	VD-60150	VD-60200
Motor Power (kW)	75+75	90+90	110+110	132+132
Rotor Speed (RPM)	15	15	15	11
Rotor Diameter (mm)	Φ520	Φ520	Φ600	Φ600
Fixed Blades QTY	20	25	25	32
Blade Thickness (mm)	60	60	60	60

Product Photos

Blade Spacer

Made from high-quality carbon steel for enhanced durability and performance.

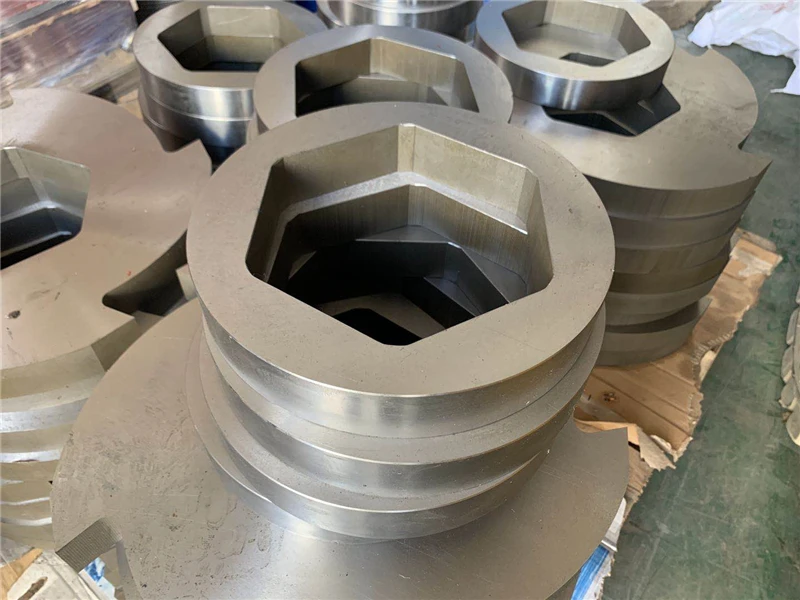

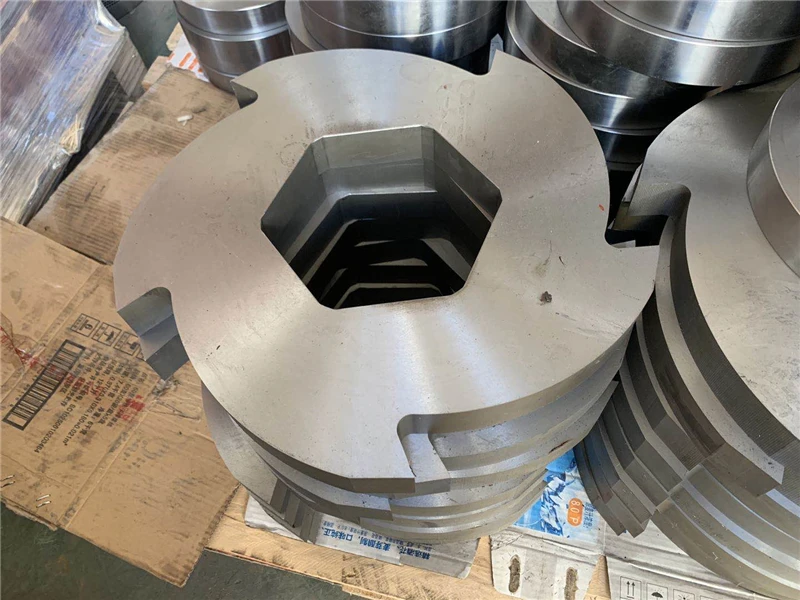

Rotary Blade

Manufactured using D-2 steel, meeting USA standards with an HRC hardness of 58-59, providing superior performance compared to
SKD-II. Alternatively, we can offer DC-53 steel for even higher wear resistance and longevity.

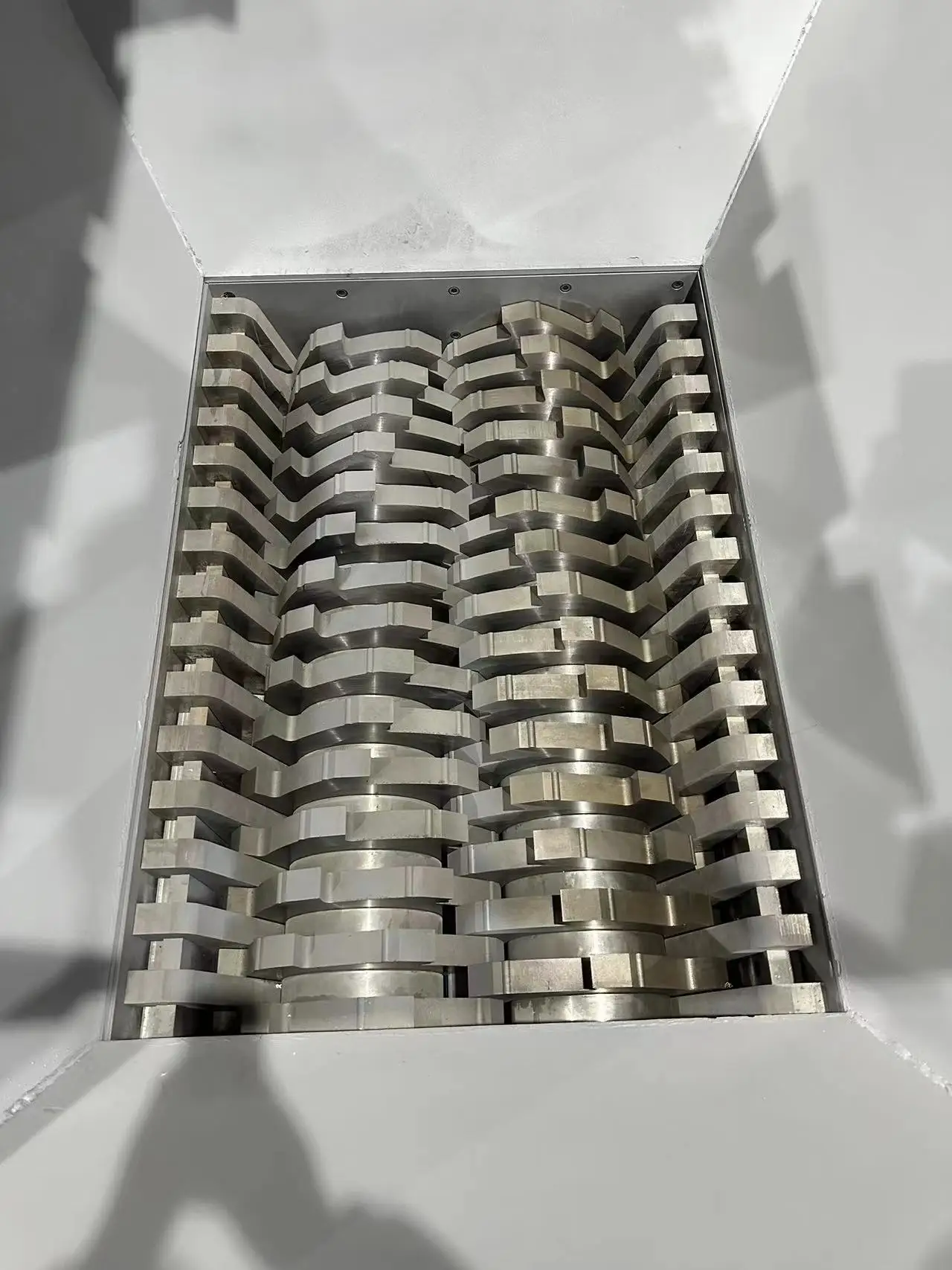

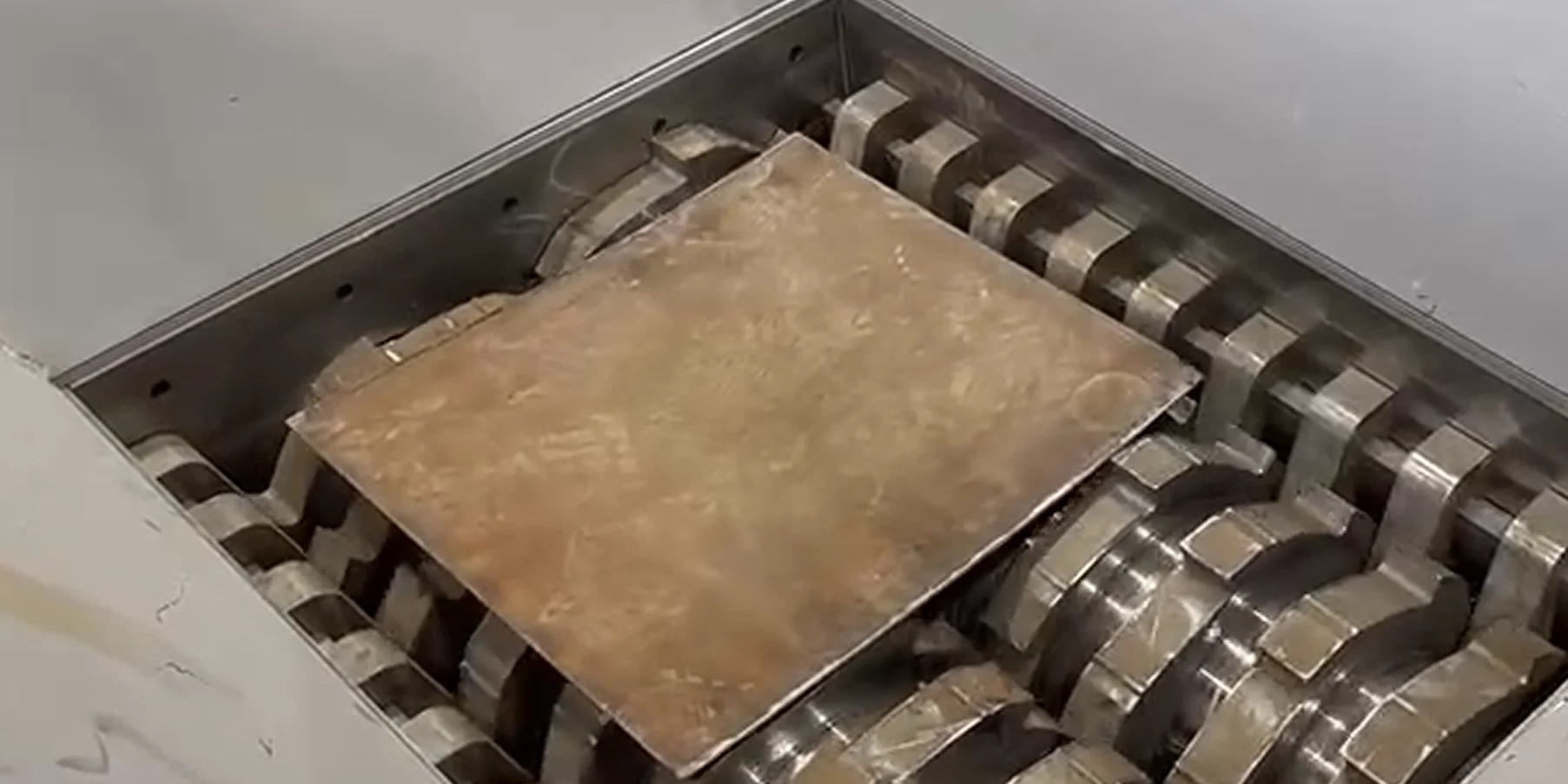

Shredding chamber

Constructed from premium carbon steel, ensuring stable operation without vibration for improved efficiency and reliability.

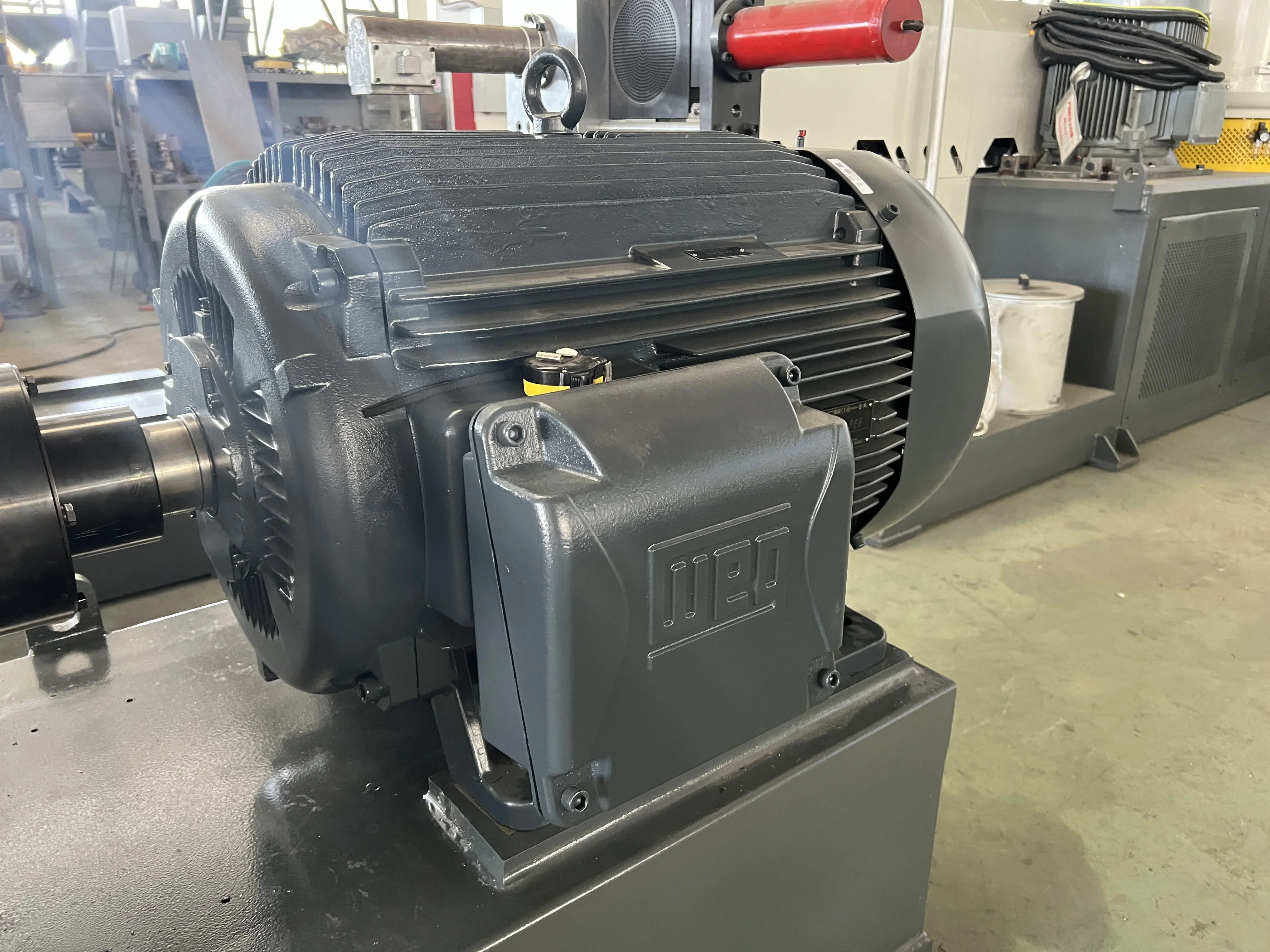

Motor

Utilizes motors from well-known domestic brands. Specific motor brands can also be designated upon request.

Gear Reducer

Equipped with reducers from renowned domestic brands such as Guomao and TONGLI. Specific brands can also be designated upon
request.

Bearing

We use NSK bearings, a renowned Japanese brand, imported directly from Japan for optimal precision and durability. Additionally,
we can offer SKF bearings as an alternative upon customer request.

Independent control cabinet

Electrical components are sourced from internationally recognized brands, Such as schneider contactors, ABB inverters.

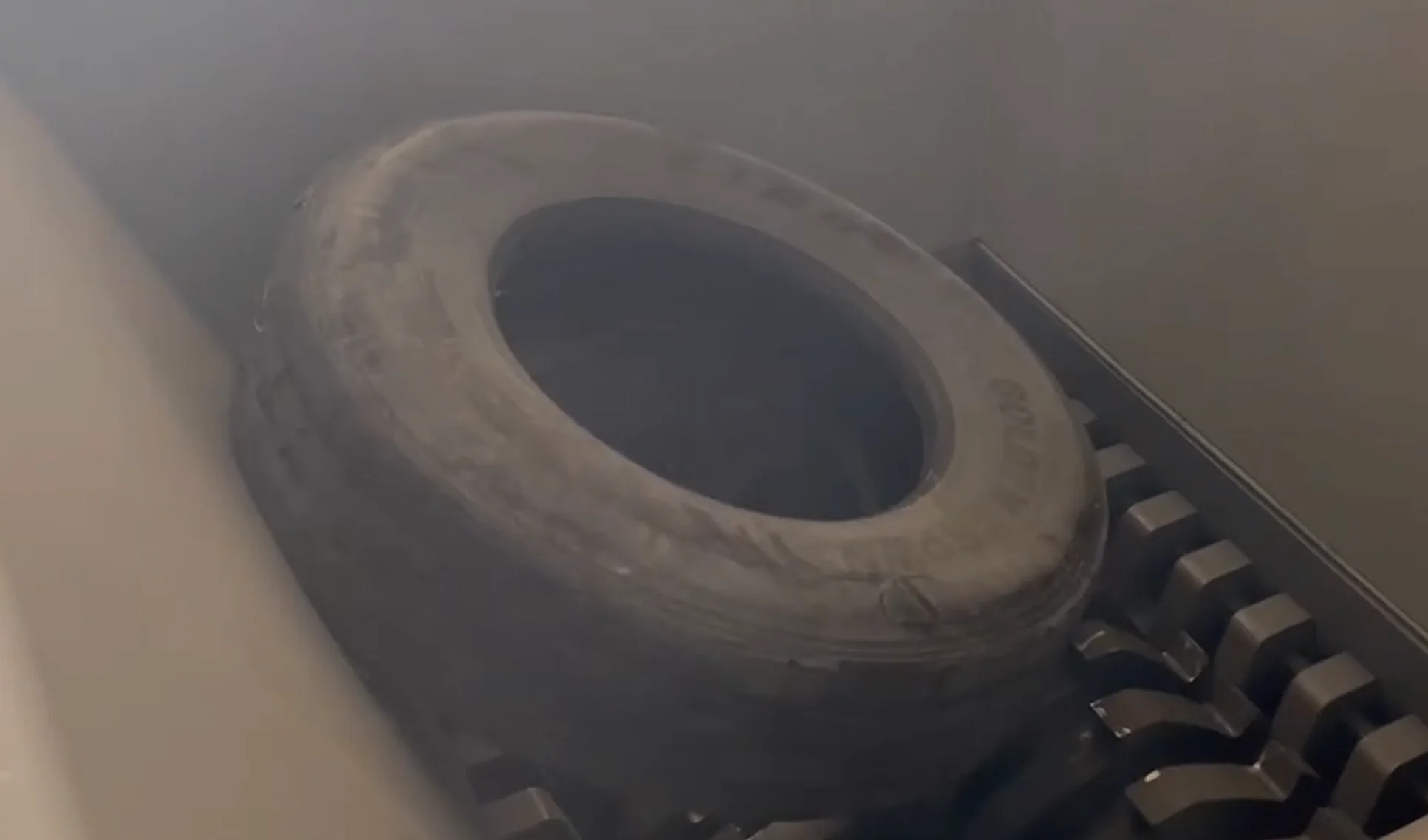

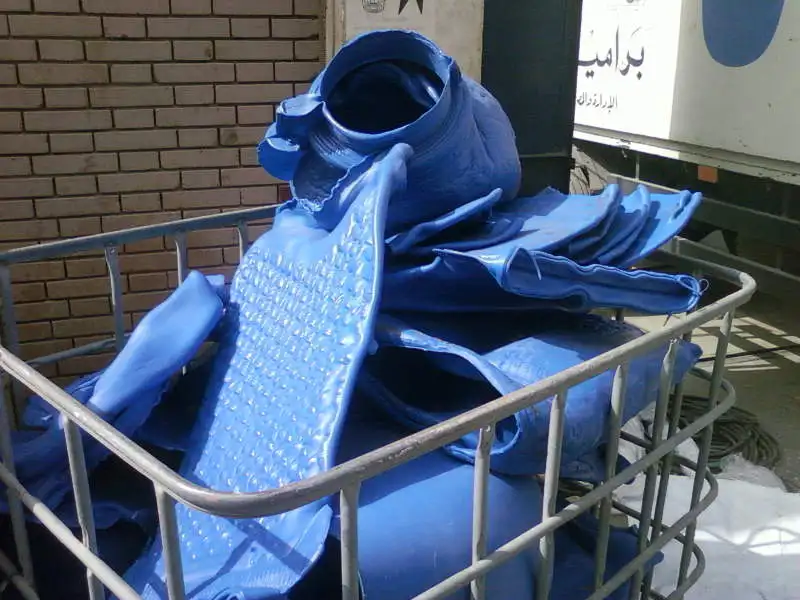

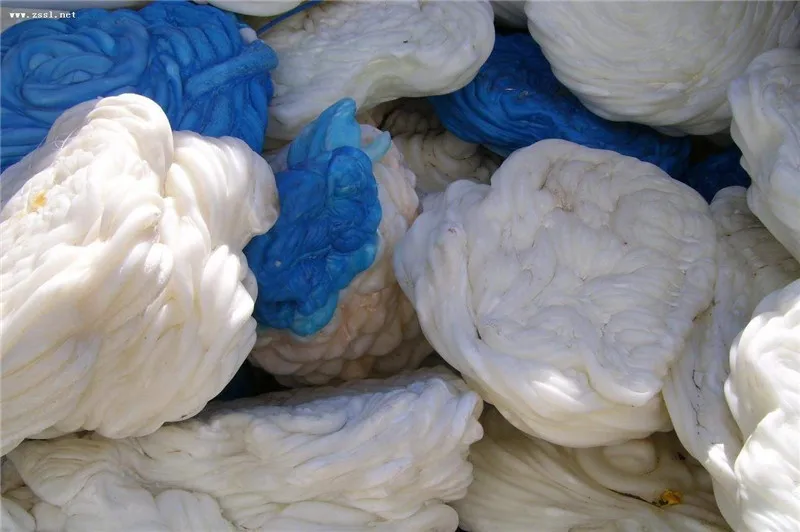

Before shredding

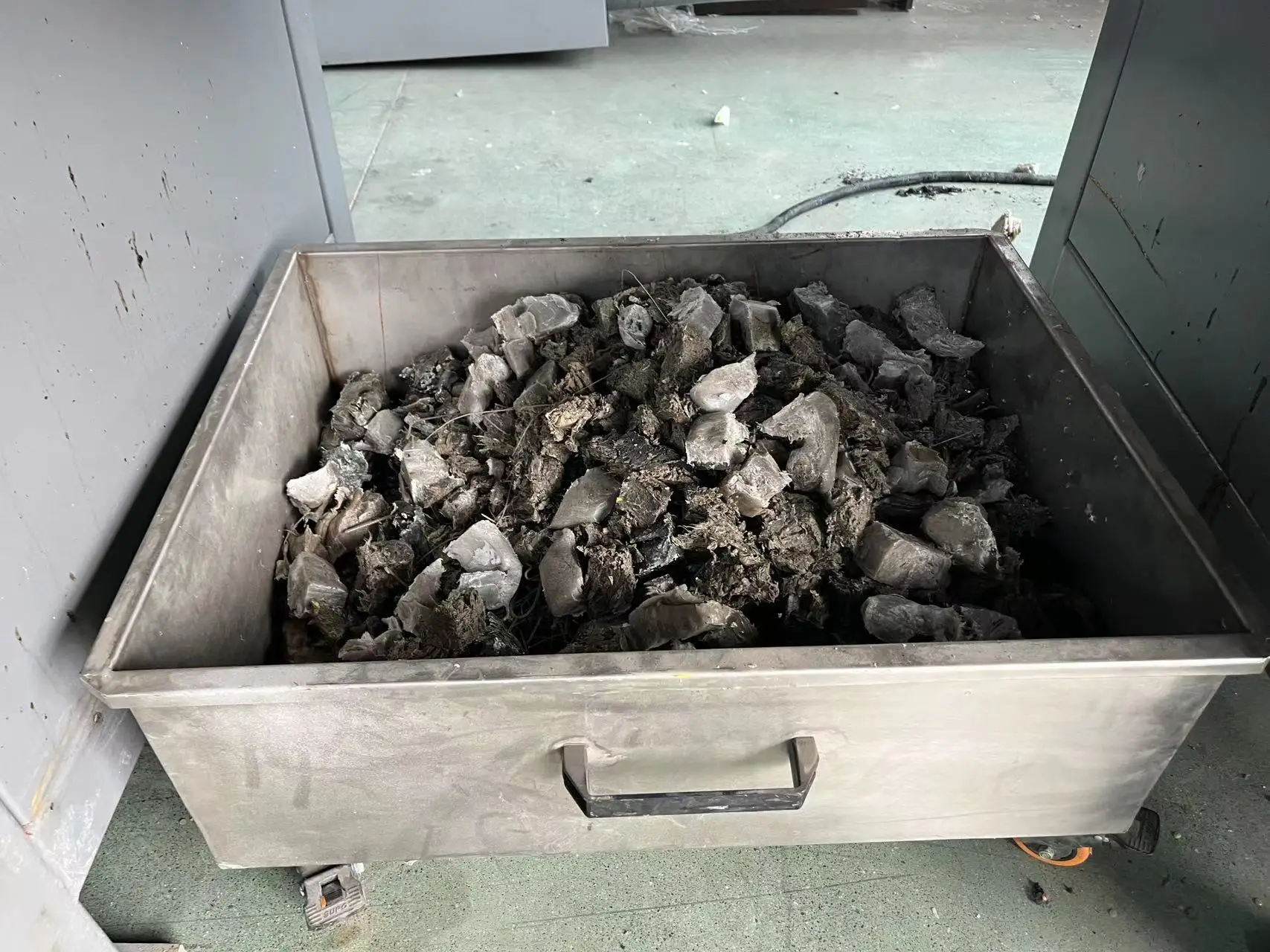

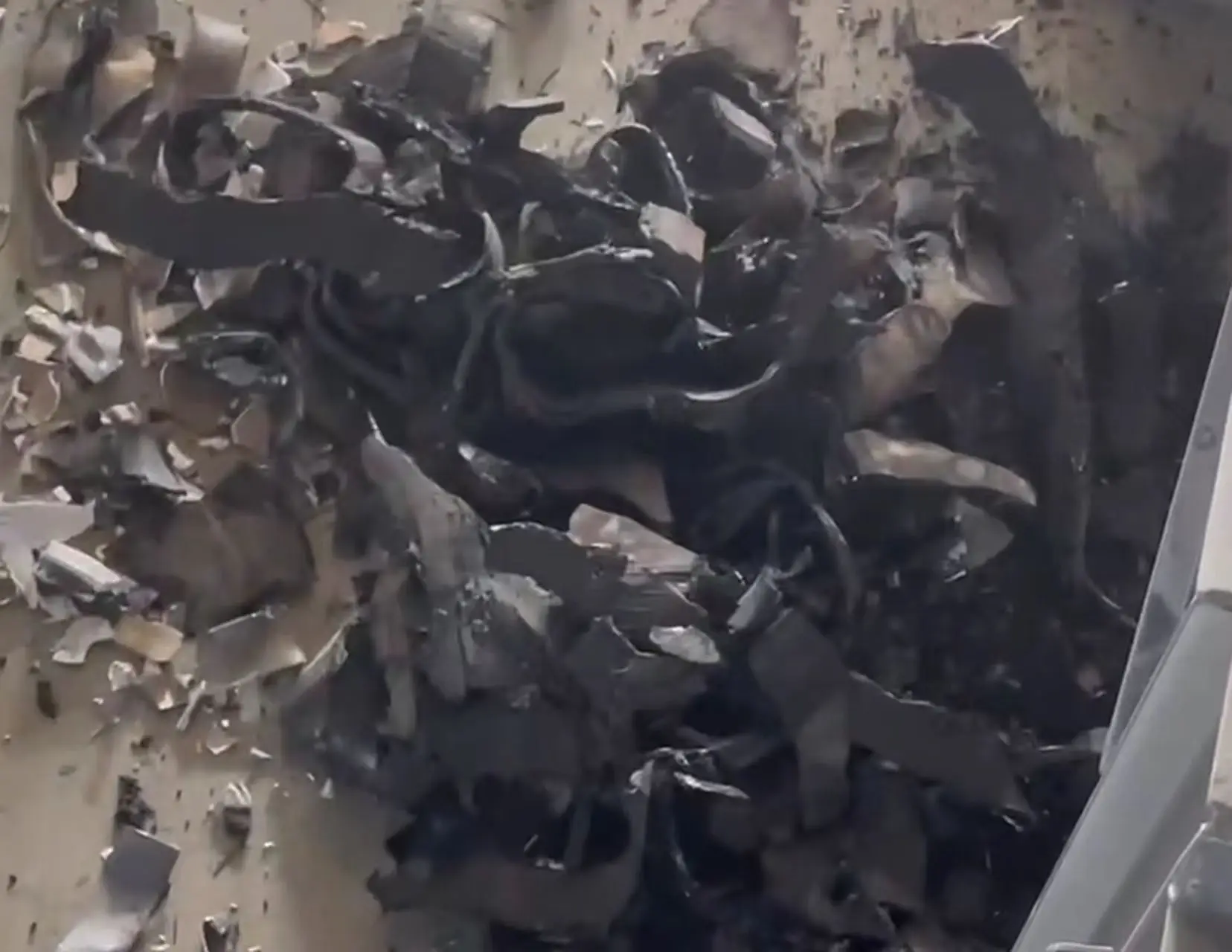

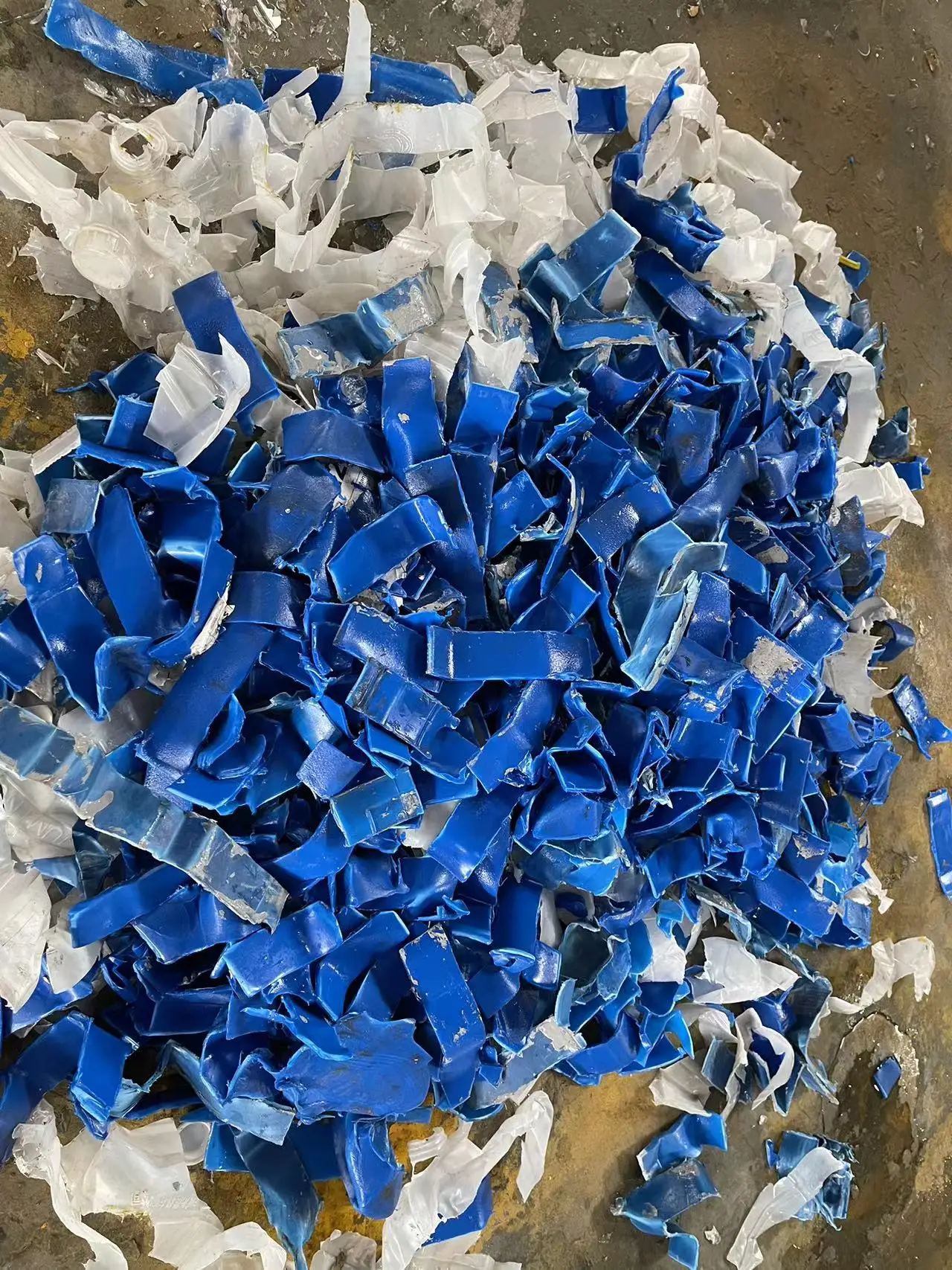

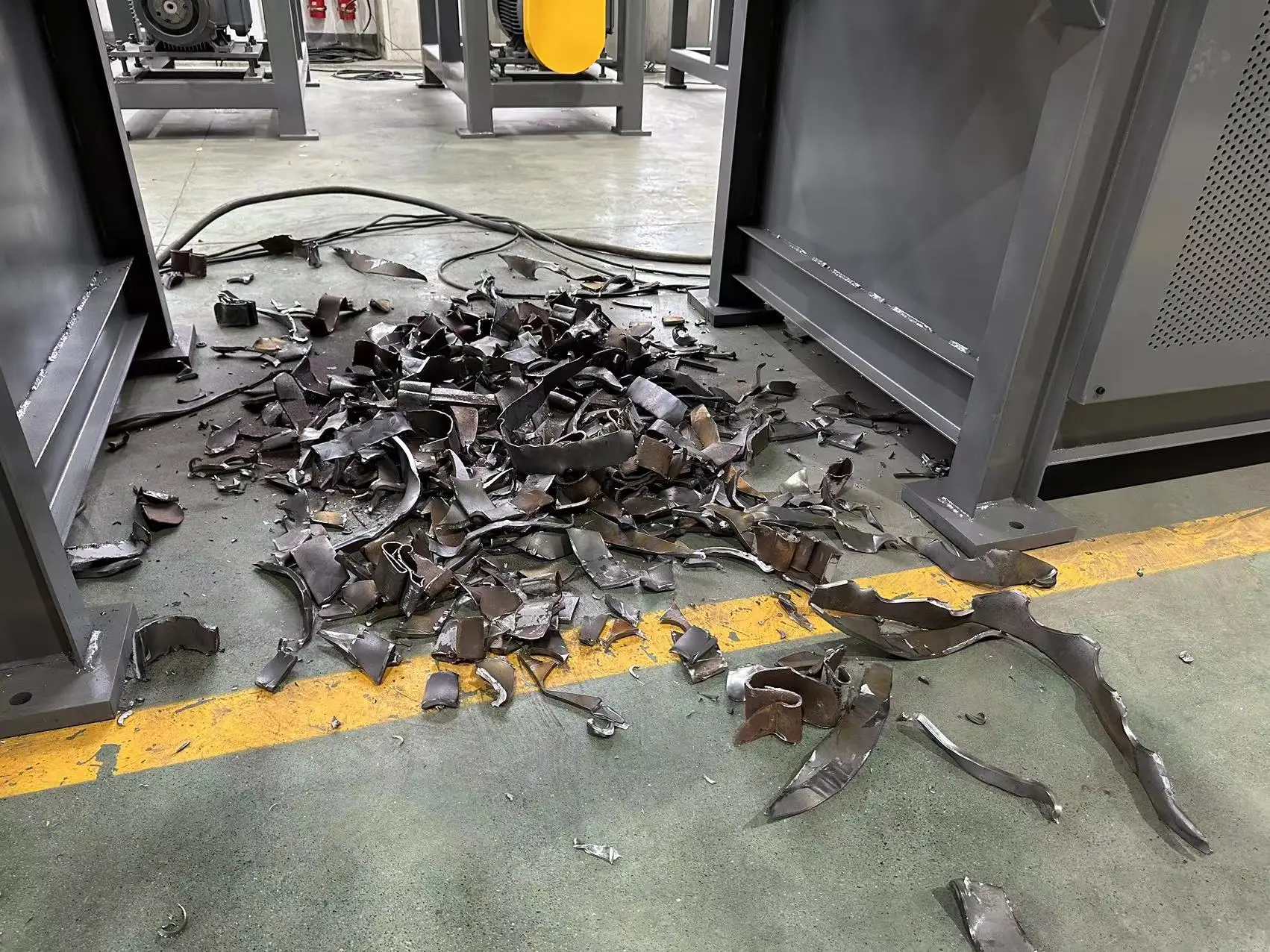

After shredding

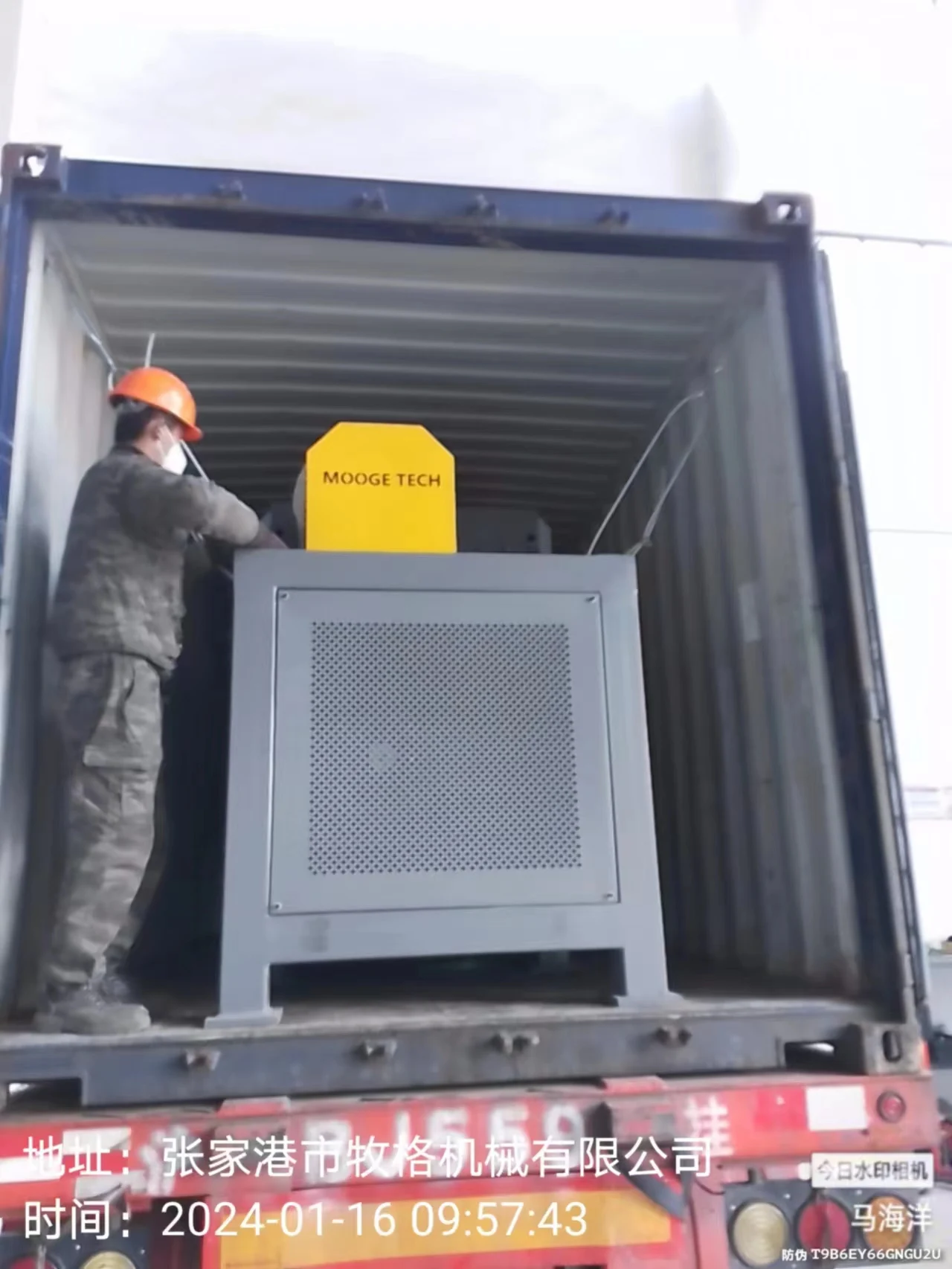

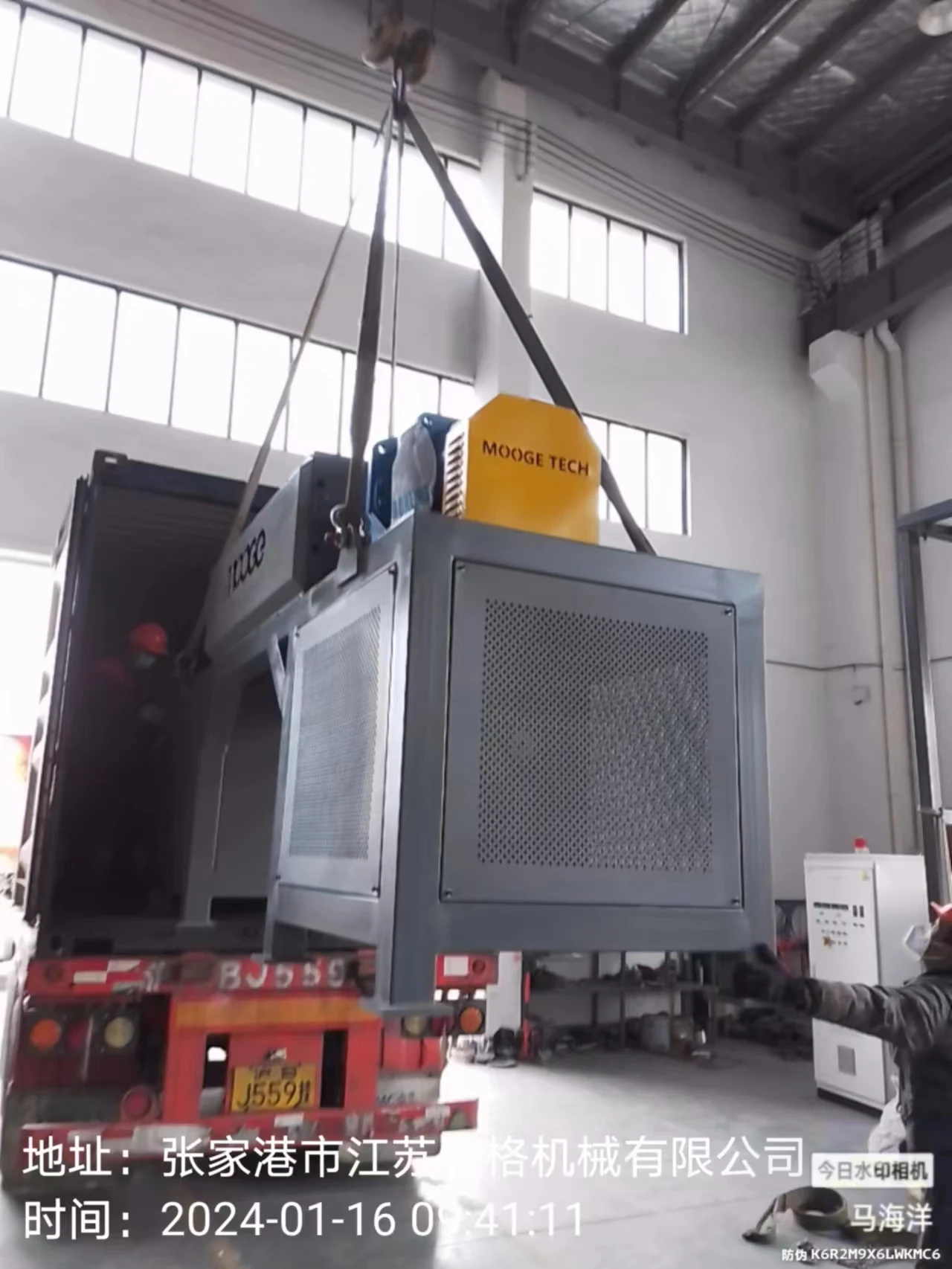

Packing & Delivery
